WESTFIELD PART NUMBER: SPECIAL EDITION MODULE 1

CONTENTS

Space frame epoxy coated chassis
Rivnuts and diff bushes
Aluminium panels supplied
Front and rear wishbones (epoxy coated and bushed)
Aluminium front and rear uprights, hubs, brake discs and calipers
Pedal assembly
Master cylinder
Drive shafts and cv joints
Differential (LSD)
Brake pipes and Aeroquip hoses
Fuel lines
Steering columns top and bottom
Battery tray
Wiring loom
Ball joints
Shock absorbers and springs
Steering rack, mountings and track rod ends
Hand brake lever and cable
Complete fastener kit

WESTFIELD PART NUMBER: SEIW CHY MAZDA-EPX

CONTENT

Space frame chassis
Top and bottom front wishbones
Engine mounting brackets
Brake lines (Aeroquip and T-Piece)
Aluminium panels set – floor pan, seat back, tunnel, scuttle
Nut and bolt pack
Riv-Nut pack
Suspension bushes
Chassis plate
Wing brackets
Hand brake cable
Bottom rear wishbones
Construction manual

WESTFIELD PART NO: 4633039

DESCRIPTION:

Full FIA specification roll cage. To suit standard/narrow bodied Westfields.

Please be aware welding is required for installation of the side bars. Side bars may also require cutting down to suit your chassis. Early narrow chassis varied in design, bars are provided longer to allow for variables.
Includes all fittings, nuts, bolts and washers.

PTG700/T45 vs CDS Material Specifications:
T45 (High Tensile Carbon Manganese Steel) & PTG700 has a tensile strength between 700M/mm2-900N/mm2, whereas CDS (Cold Drawn Seamless Carbon Steel) has tensile strength of approximately 480N/mm2.
The minimum yield strength (when metal starts to deform) of T45 & PTG700 (620N/mm2) is almost double that of CDS.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 4633038

DESCRIPTION:

Full FIA specification roll cage. To suit standard/narrow bodied Westfields.

Please be aware welding is required for installation of the side bars. Side bars may also require cutting down to suit your chassis. Early narrow chassis varied in design, bars are provided longer to allow for variables.
Includes all fittings, nuts, bolts and washers.

PTG700/T45 vs CDS Material Specifications:
T45 (High Tensile Carbon Manganese Steel) & PTG700 has a tensile strength between 700M/mm2-900N/mm2, whereas CDS (Cold Drawn Seamless Carbon Steel) has tensile strength of approximately 480N/mm2.
The minimum yield strength (when metal starts to deform) of T45 & PTG700 (620N/mm2) is almost double that of CDS.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 1420155B

DESCRIPTION:

Westfield XI Pontoon Panel Set
Please note that the panels comes ready to fit so have been laser cut folded and rolled to suit the Westfield XI chassis.
Set includes both sides of panels.
PLEASE NOTE THAT THIS ITEM IS COLLECTION ONLY AND CANNOT BE SHIPPED.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

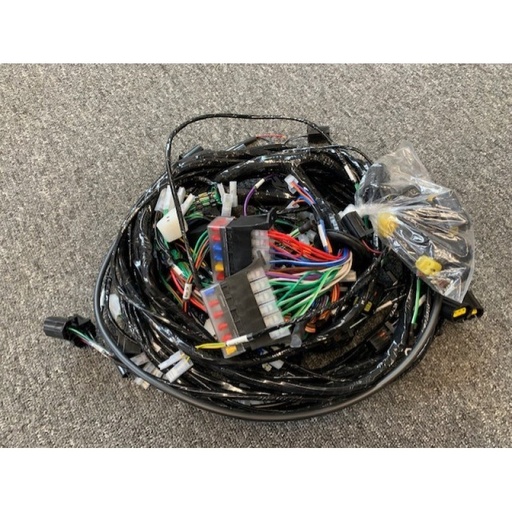

WESTFIELD PART NO: 2921175

DESCRIPTION:

Main chassis wiring loom, Loom comes with all ends pre-labelled for easier installation.
This Loom suits all models expect Westfield XI and Sport Turbo

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

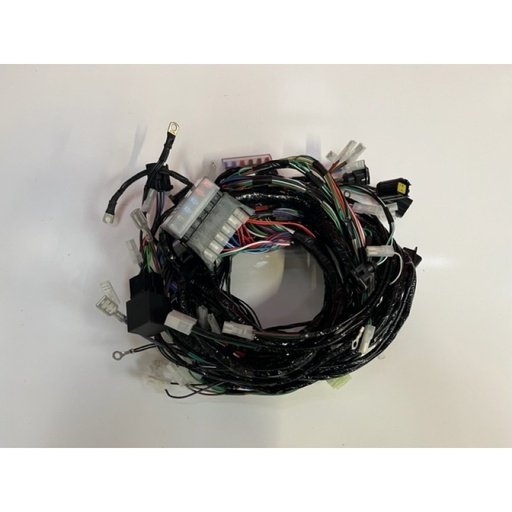

WESTFIELD PART NO: 2921242

DESCRIPTION:

Westfield XI Main Chassis Loom

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3500044

DESCRIPTION:

ZK Carbon Effect Rear Lamp Kit

Includes:
Rear lamps, stop tail, and indicators with housings
Fog and reverse lamps, with housings
Wiring looms to join straight into the westfield chassis loom
Fitting screws and reflectors.

Complete kit to fit to your car.
Designed to fit cars with later ZK body not kit style bodywork, from roughly 1998 onwards


ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 4633037

DESCRIPTION:

Half cage roll bar for widebody cars, with double central cross brace and 2 rear stays.
Suitable for classic and FW body styles.
Supplied with all nuts bolts and washers, all parts needed to fit the bar to your car.

Meeting MSA requirements. will suit LHD and RHD cars also suitable for trackdays, hillclimb, sprint and racing. please check the regulations for your individual championship.

Height, 485mm from roll bar mounting plates on your chassis.

PLEASE NOTE THAT THIS ITEM IS COLLECTION ONLY AND CANNOT BE SHIPPED.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 3235050

DESCRIPTION:

Type 9 Steel Bell Housing
Bell Housing has been reconned and sprayed to give a clean finish.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 4633031

DESCRIPTION:

Side Protection Bar Kit
Bars will fit wide body chassis and can be bolt on fitment or can be welded in.
Image shows a welded in version were the bolt in tabs have been cut off.
Comes with fixings.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 6102004

DESCRIPTION:

Set of front and rear chassis stands including bolts
Black Powder Coated Finish
Used for people building cars in there garage up to a rolling chassis stage

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 2921269

DESCRIPTION:

Wiring loom heated screen sub-connects to current main chassis loom

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 5899010

DESCRIPTION:

Carbon Fibre Chassis Finishers - Prepreg
To be fitted on cross members of front floor pan
May need cutting to size

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 2321003

DESCRIPTION:

KA handbrake lever
Please note that the original Ford Sierra handbrake mech is now no longer available and chassis modification may be needed to fit this handbrake.

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 5899028

DESCRIPTION:

Chassis finishers - Pair
To suit wide body cars only

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

SPECIAL INSTRUCTIONS:

Please note all trim orders are made to order due to the various colour and style options available. The lead time can vary from time to time so please bare this in mind when ordering. We have various trim colours available but please give us a ring and we can discuss options for your needs if not black trim will be supplied.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 4313064B

DESCRIPTION:

Differential mounting bush
Used on most chassis' from the early 90's onwards.
Please note these are not the same as the suspension bushes and are 12mm not 7/16
4 required per car

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

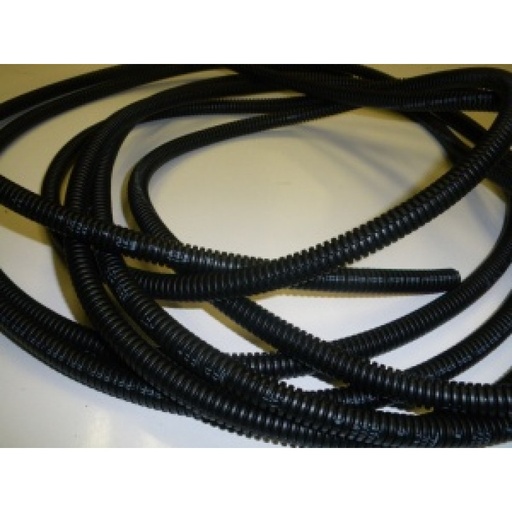

WESTFIELD PART NO: 0879052

DESCRIPTION:

Convoluted split tubing - 17mm thick

Ideal for protecting wiring and/or chassis harnesses

Prices are per the metre

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 0879044

DESCRIPTION:

Convoluted split tubing - 11mm thick

Ideal for protecting wiring and/or chassis harnesses

Prices are per the metre

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk

WESTFIELD PART NO: 0879028

DESCRIPTION:

Convoluted split tubing - 7mm thick

Ideal for protecting wiring and/or chassis harnesses

Prices are per the metre

ORDER INFORMATION:

Where held in stock your order will be delivered in a maximum of 2-3 days. Delivery on special orders products is shown at the bottom of this page.

HELP:

If you are unsure whether this part will fit your Westfield, Please contact us on parts@westfield-sportscars.co.uk
